The etalon of quality

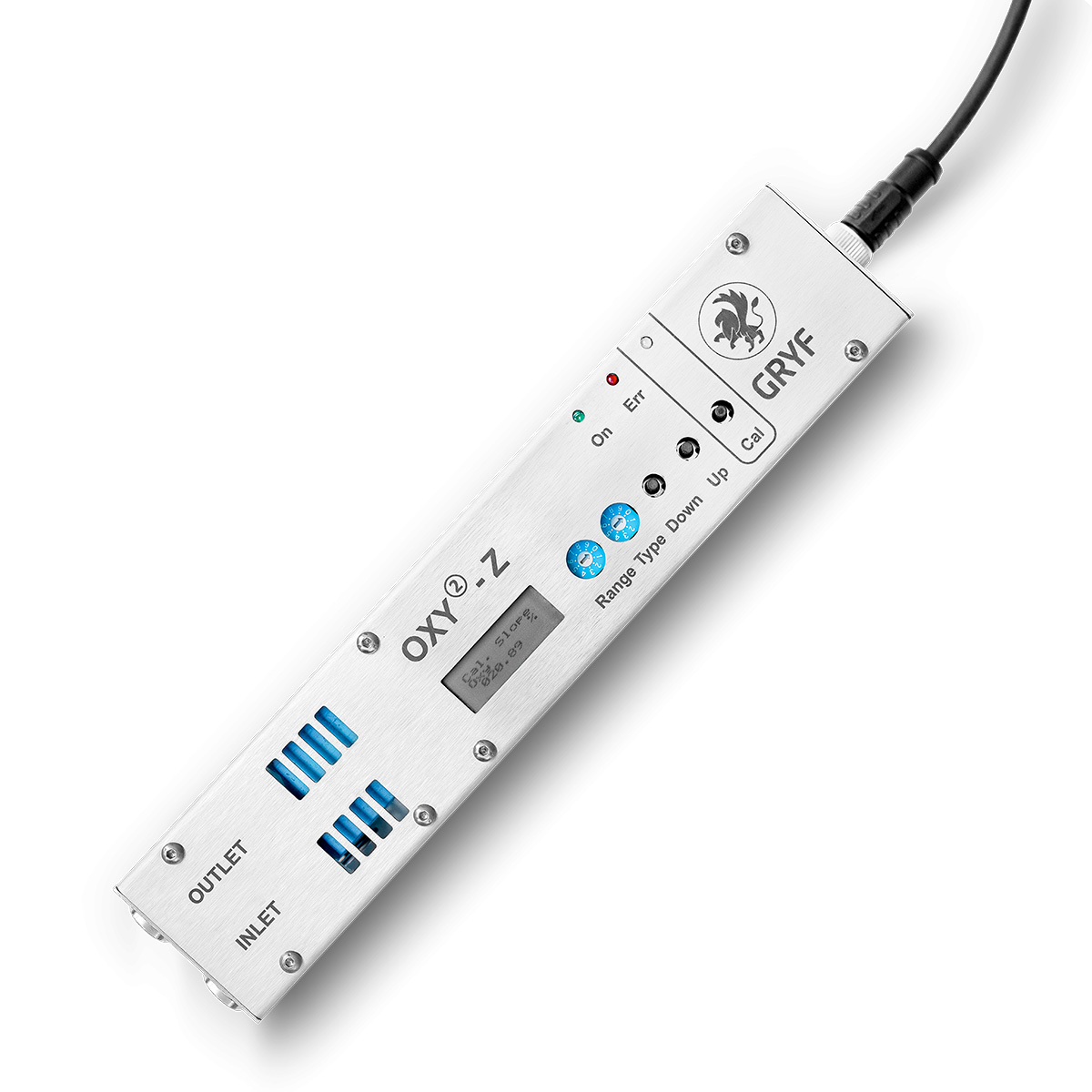

Since the launch of the first generation in 2010, GRYF OXY Z stands for the most reliable and endurant Zirconia oxygen analyzer on the market. The second generation combines the exceptional features of its predecessor with a modern design and new, sophisticated technologies.

team illustration

Watch video about OXY product line

Our analyzers provide precise and reliable oxygen measurement, offering a significant advantage. Achieve optimal monitoring and control of oxygen levels in your environment for the best results and a healthy process.

Play video on Youtube

Unlike any other

The sensor design allows measuring of oxygen concentrations from 0,50 to full 100.00 %, regardless of gas pressure. High oxygen concentrations do not affect the sensor’s lifespan. The absolute precision of reading is ±0,5 % within the full measuring scale. Unlimited Shelf Life while stored in the normal atmosphere. Proved lifespan of over 10 years while operated in gas with >5 % of oxygen.

Innovative and compatible

Integrated display showing reading results and allowing calibration without any additional device. Fulfilling dimensional requirements for most of the existing relevant PSA devices. Both 4–20 mA and Modbus RTU interface. System for logging operation conditions accessible by Android application.

The quality you deserve

In GRYF, we believe that there is no space for compromise in engineering. That is why thousands of our customers worldwide choose our technologies for projects to have the highest reliability and superior precision.



Basic technical parameters

Supply voltage 24 V/DC ± 10 %
Supply current 500 mA
Output analog signal 4÷20 mA
Data communication Modbus RTU (RS485)
Oxygen concentration measurement range 0.1÷100 %
Sensitivity 0.01 % (1÷5 %), 0.1% (1÷100 %)
Measurement accuracy ± 0.5 %
Warm-up time after start 60 s
Temperature stabilization after start min. 5 minutes
Signal NO FAULT 24 V, max. 100 mA
Flow rate of measured gas 0.2–0.3 l / min
Inlet pressure 1 Barg ± 0.1 Bar
Maximum allowable pressure PS 2 Bar
Operating temperature from -10 to +50 °C

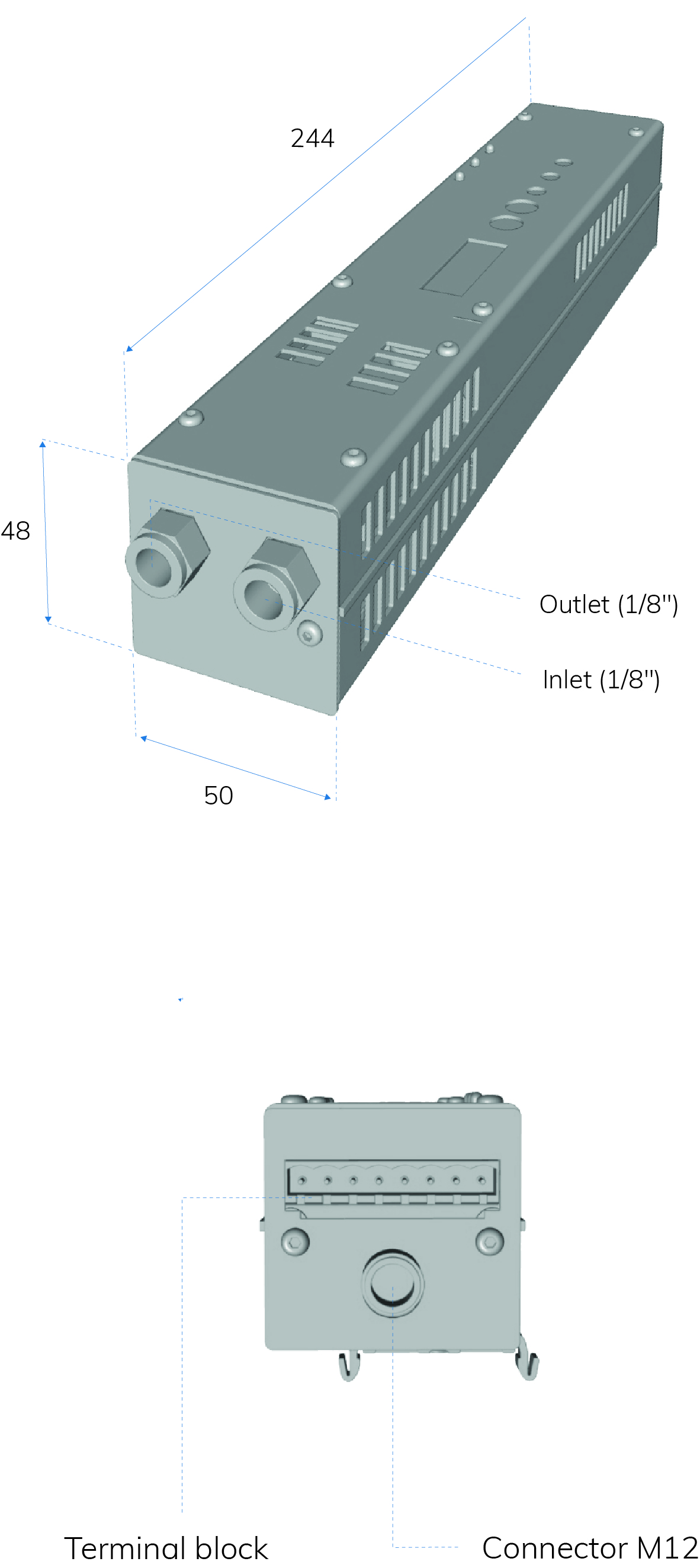

Dimensions 244 x 50 x 48 mm
Degree of protection IP20

Looking for a gas

As a supplier of premium gas analyzers to the most advanced concentrator producers, we can help you choose the right solution for your application.
