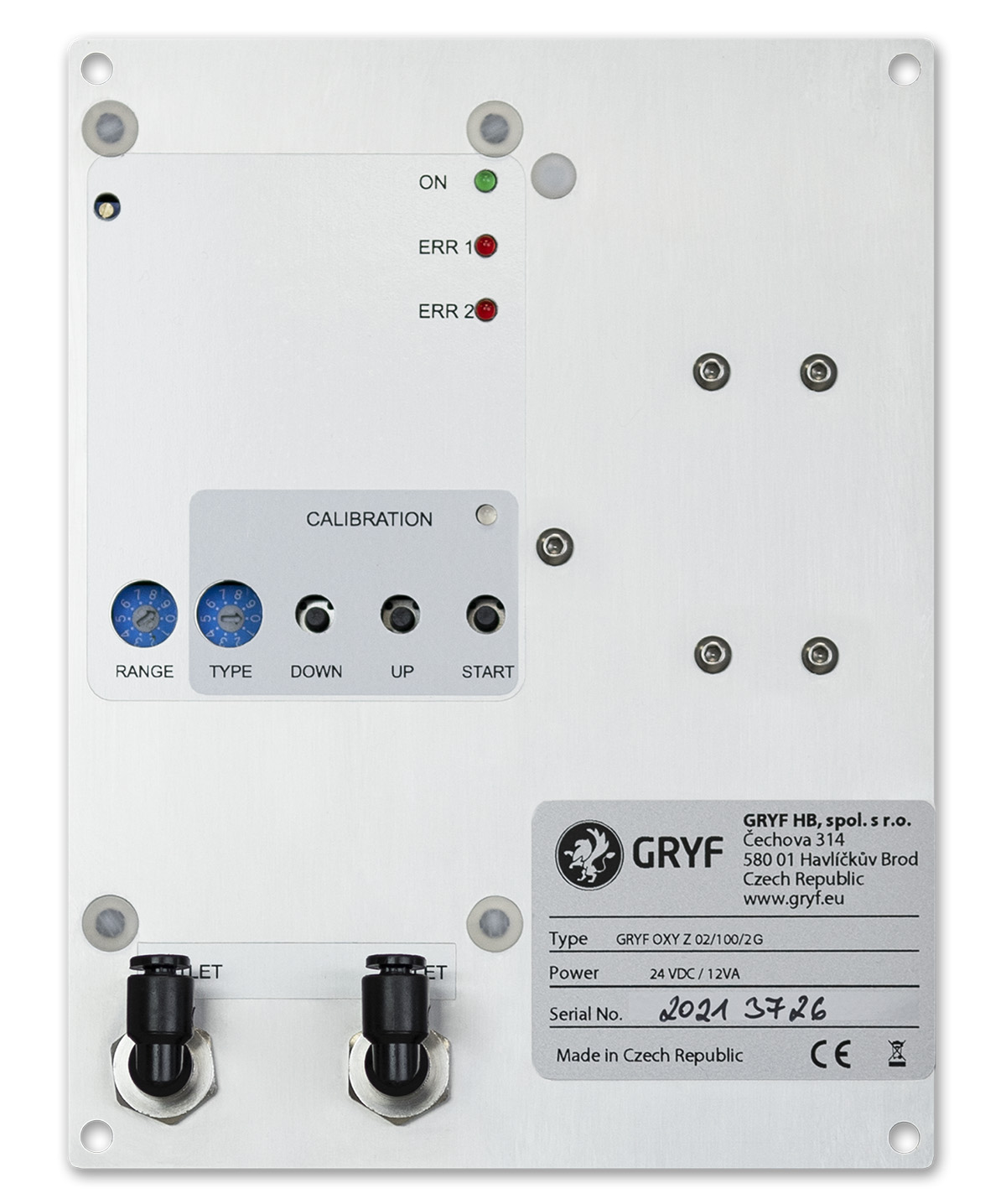

Our device detects oxygen concentration levels in gas and is designed to integrate seamlessly into oxygen gas concentrators. It can be installed in a control cabinet with a user-friendly front panel for easy operation. The device ensures reliable gas flow and accurate readings.

team illustration

Watch video about OXY product line

Our analyzers provide precise and reliable oxygen measurement, offering a significant advantage. Achieve optimal monitoring and control of oxygen levels in your environment for the best results and a healthy process.

Play video on Youtube


The device offers multiple measuring ranges for flexibility. You can easily select the desired range using the front panel controls.


Calibration is an important process to maintain accuracy. Follow the instructions to calibrate the device using pre-selected oxygen concentrations. We recommend regular calibration for optimal performance.

Analyzer installation

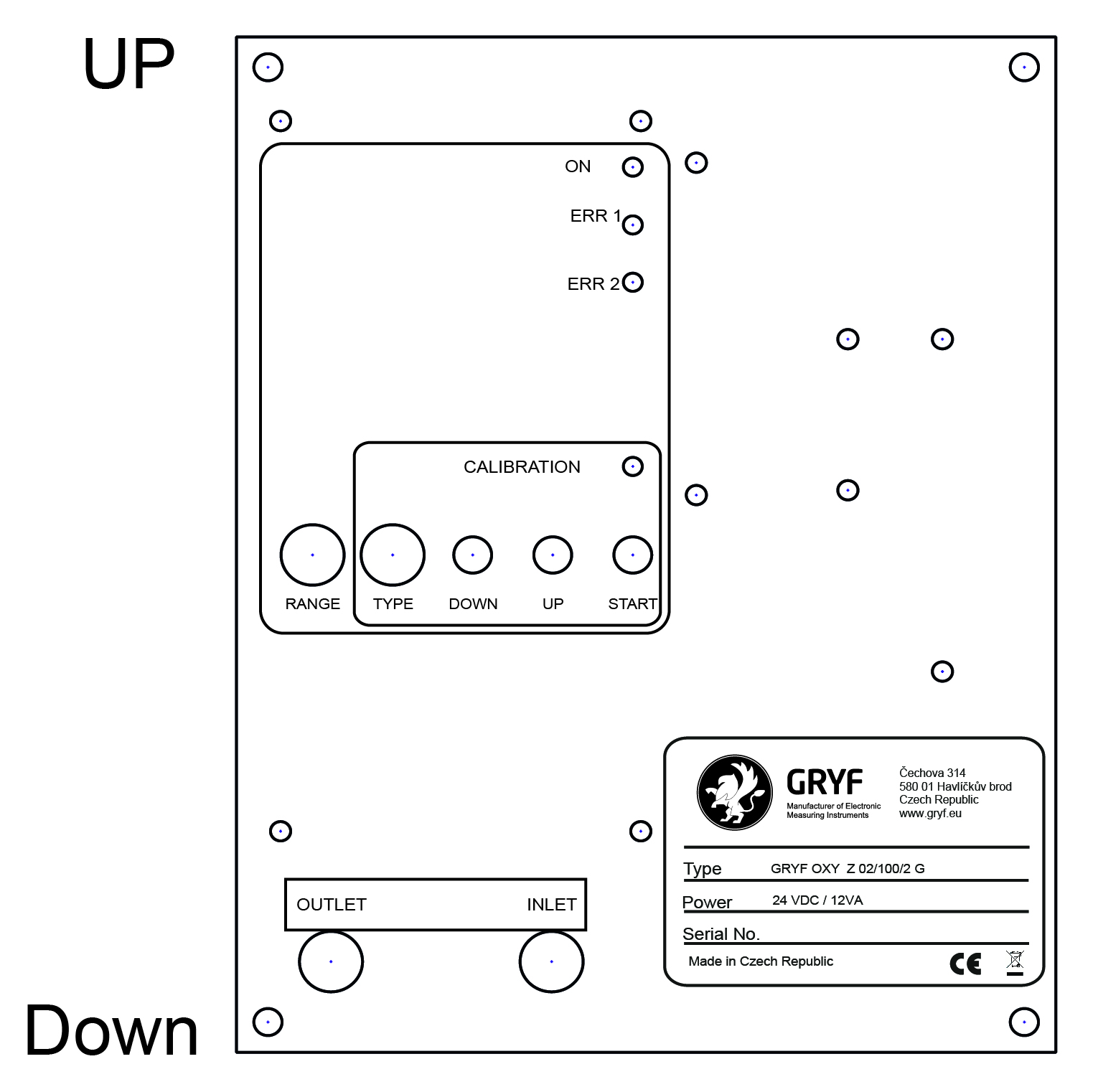

Our analyzer is designed for easy installation in cabinets or cases. It can be positioned vertically, and the connections are straightforward. Proper installation ensures reliable functioning.



Basic technical parameters

Supply voltage 24 V/dc ± 10%
Supply current 500 mA
Output signal 4 ÷ 20 mA
Oxygen concentration range 1 ÷ 100%
Sensitivity 0.01% (1÷5%), 0.1% (1÷100%)
Accuracy ± 0.5 %
Warm-up time 60 s
Temperature stabilization after start-up min. 5 minutes
Signal READY 24V, max. 100mA
Measured gas flow 0.2 ÷ 0,3 l / min
Inlet pressure 1 Barg ± 0.1 Bar
Maximum allowable pressure - PS 2 Bar
Operating temperature -10 °C ÷ 50 °C [14 °F ÷ 122 °F]
Dimensions 167 x 130 x 65 mm

Looking for a gas

As a supplier of premium gas analyzers to the most advanced concentrator producers, we can help you choose the right solution for your application.
