Our device accurately detects oxygen concentration levels in gas and is designed for integration into oxygen concentrators. It features a user-friendly interface for easy operation.

team illustration

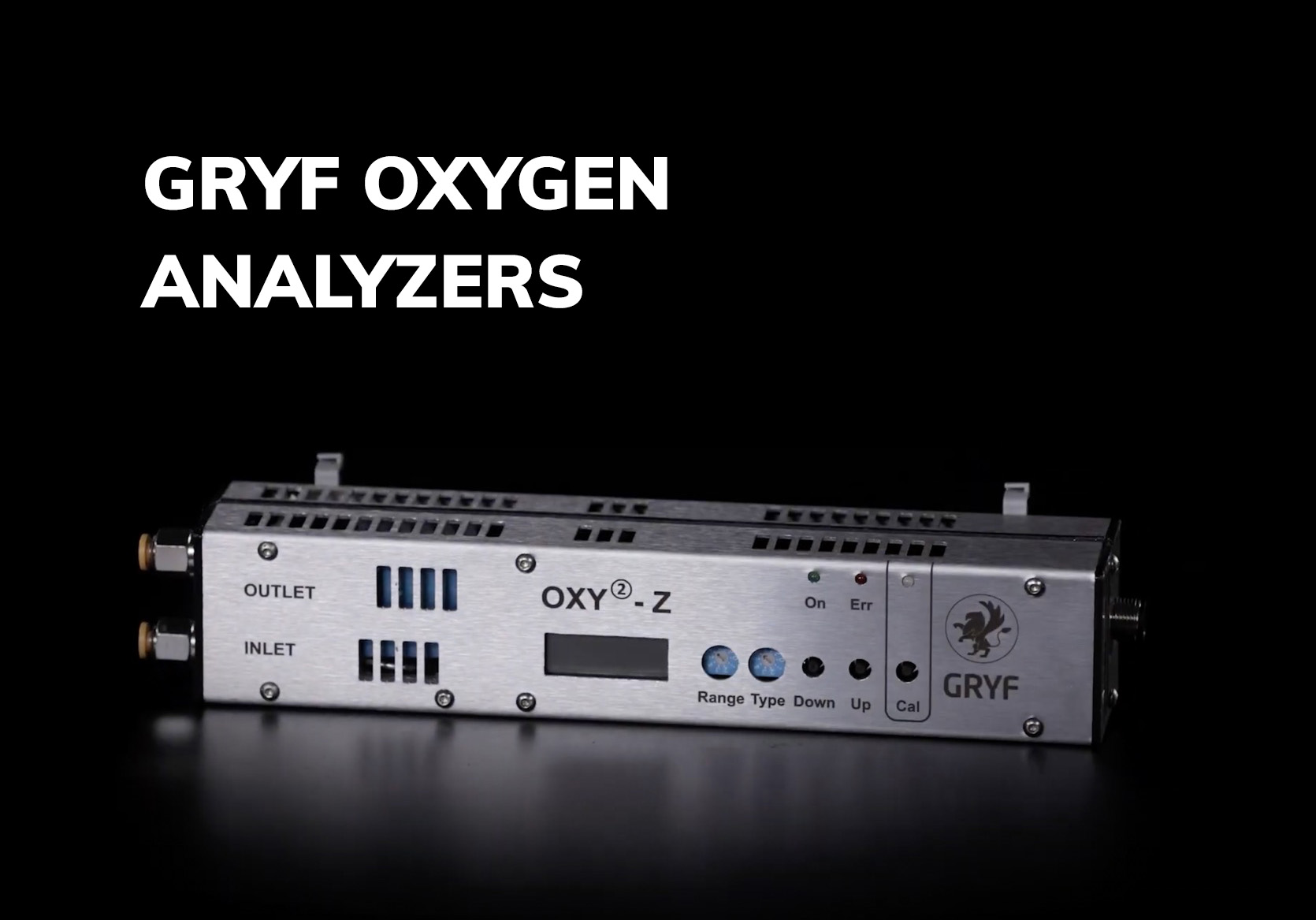

Watch video about OXY product line

Our analyzers provide precise and reliable oxygen measurement, offering a significant advantage. Achieve optimal monitoring and control of oxygen levels in your environment for the best results and a healthy process.

Play video on Youtube

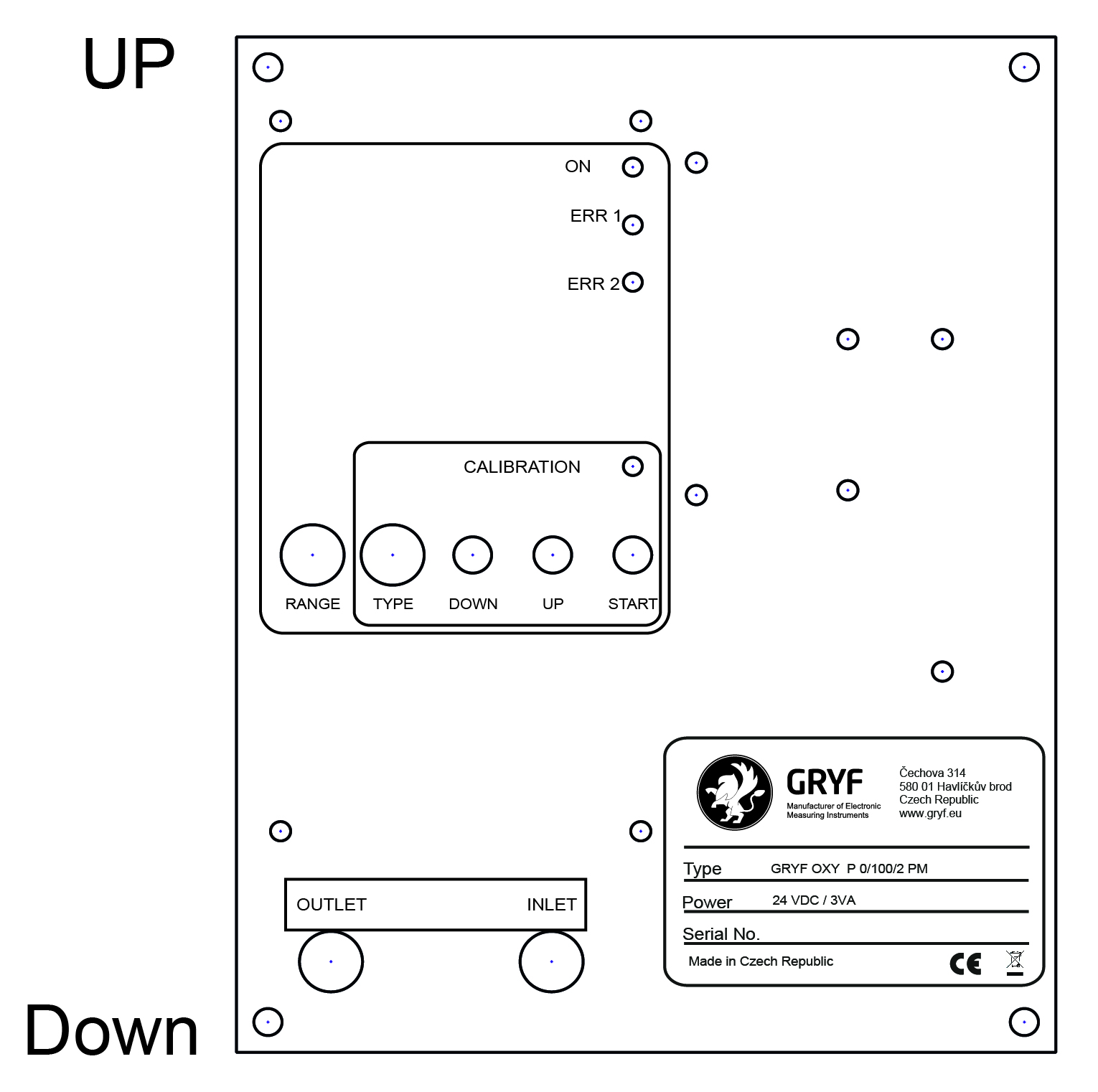

The device offers selectable measuring ranges for flexibility. You can easily choose the desired range using the front panel controls.


Calibration can be performed using a pre-selected concentration of oxygen. The calibration type is selected using the front panel controls. The instrument provides confirmation of successful calibration.

Analyzer Installation

Our analyzer is designed for installation in cabinets or cases. It is recommended to install it vertically with proper hose connections. The device can be securely installed using the provided holes.



Basic technical parameters

Supply voltage 24 V/dc ± 10%
Supply current max. 100 mA
Output signal 4 mA to 20 mA
Oxygen concentration range 0% to 100%
Sensitivity 0.01% (0 - 10%), 0.1% (0 - 100%)
Accuracy ± 0.2%
Zero stability ± 0.2% per month
Warm-up time 20 sec (signal READY switch on 5min after)
Measured gas flow 0.1 - 0.3 l / min
Error caused by flow change max. 0.05% per 0.01 l/min
Inlet pressure 1 Barg ± 0.1 Bar
Operating temperature 5 ° C to 50 ° C [14 ° F to 122 ° F]
Dimensions 167 x 130 x 65 mm
Weight 450g

Looking for a gas

As a supplier of premium gas analyzers to the most advanced concentrator producers, we can help you choose the right solution for your application.
