Our analyzers provide precise and reliable oxygen measurement, offering a significant advantage. Achieve optimal monitoring and control of oxygen levels in your environment for the best results and a healthy process.
Play video on Youtube
Install the analyzer vertically for optimal performance and enjoy quick and precise measurements.

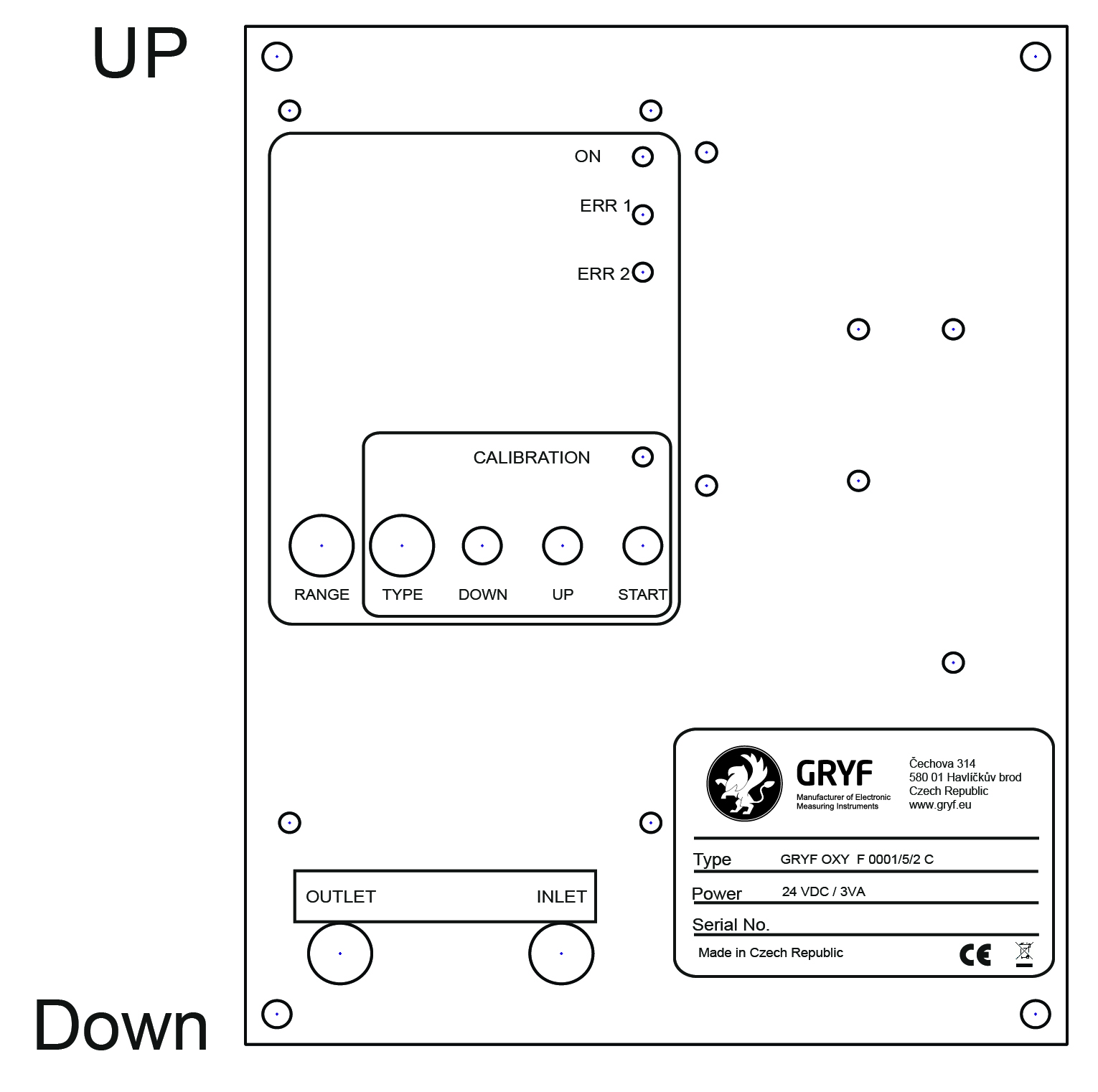

Choose the appropriate measurement range using the front panel switch for accurate oxygen concentration readings.

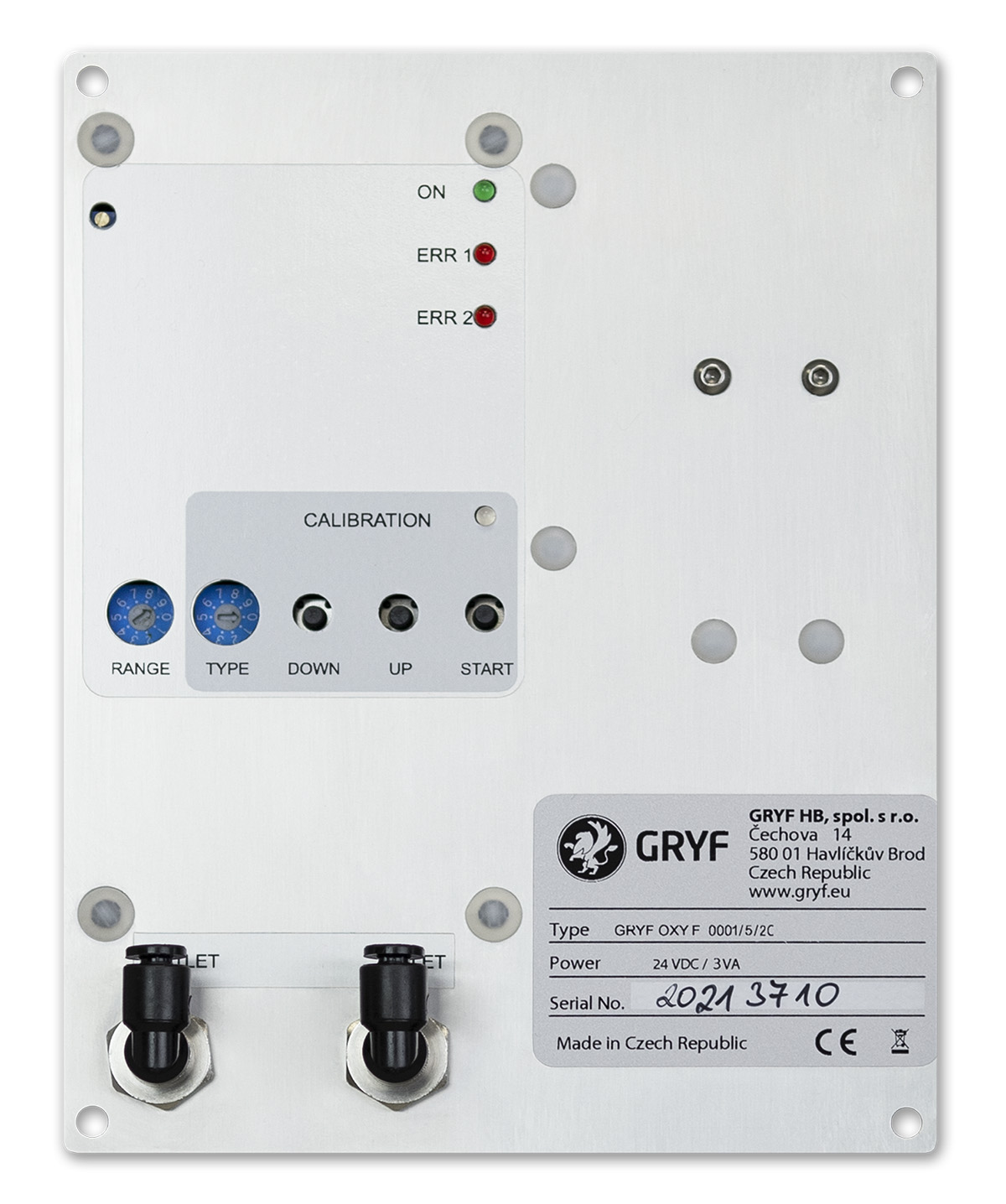

Our analyzer is designed for easy installation in cabinets or cases, offering flexibility and convenience.
| Supply voltage | 24 V/dc ± 10% |
| Supply current | 60 mA |
| Output signal | 4 ÷ 20 mA |
| Oxygen concentration range | 0.001 ÷ 5.000 % |
| Sensitivity (resolution) | 0.001 % |
| Lowest measurable concentration | 0.001 % (10ppm) |
| Resolution of current output | 0.002 % (output 0 ÷ 5 %), 0.001 % (output 0 ÷ 2 %) |
| Accuracy | ± 1 % from value, ± 0.001 |
| Signal stabilization | 30 sec. |
| Signal NO FAULT | 24 V, max. 100mA |
| Measured gas flow | 0.2 ÷ 0.3 l / min |
| Inlet pressure | 1 Barg ± 0.1 Bar |
| Operating temperature | 0 °C ÷ 50 °C [32 °F ÷ 122 °F] |
| Dimensions | 167 x 130 x 65 mm |
| Sensor Lifetime | 24 months at concentrations < 2% |
As a supplier of premium gas analyzers to the most advanced concentrator producers, we can help you choose the right solution for your application.
