The epitome of reliability

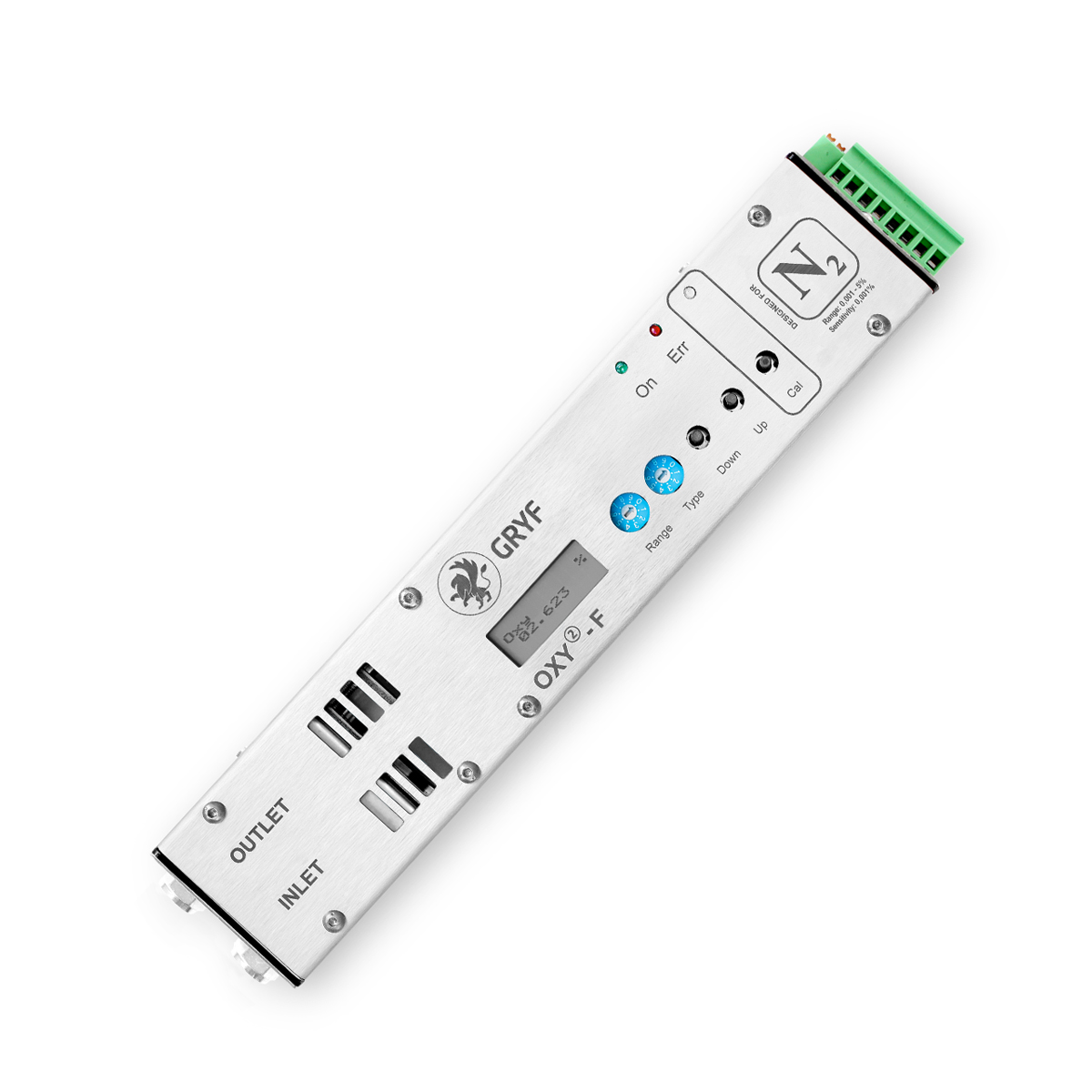

The OXY F analyzer had always been the flagship of Nitrogen analyzers. The precision of a paramagnetic sensor, with the resilience of a Zirconia, yet operating with fuel-cell technology. The 2nd generation keeps the same qualities, extending them through system integration, ergonomy of use, and auto diagnostics.

team illustration

Watch video about OXY product line

Our analyzers provide precise and reliable oxygen measurement, offering a significant advantage. Achieve optimal monitoring and control of oxygen levels in your environment for the best results and a healthy process.

Play video on Youtube

Unlike any other

The embedded solenoid valves protect the sensor when Oxygen concentration rises above safe limits, the same as during its storage period. Inner flow control and many other unique technical enhancements contribute to outstanding stability and exceptional lifespan of the sensor.

Innovative and compatible

Integrated display showing reading results and allowing calibration without any additional device. Fulfilling dimensional requirements for most of the existing relevant PSA devices. Both 4-20mA and Modbus RTU interface. System for logging operation conditions accessible by Android application.

The quality you deserve

In GRYF, we believe that there is no space for compromise in engineering. That is why thousands of our customers worldwide choose our technologies for projects to have the highest reliability and superior precision.



Basic technical parameters

Supply voltage 24 V/DC ± 10 %
Supply current 60 mA
Output analog signal 4÷20 mA
Data communication Modbus RTU (RS485)
Oxygen concentration measurement range 0.001 ÷ 5000 %
Sensitivity (resolution) 0.0001 %
Lowest measurable concentration 0,001 % (10 ppm)
Resolution of current output 0.002 % (output 0 ÷ 5 %), 0.001 % (output 0 ÷ 2 %)
Accuracy ± 1 % from value, ± 0.001
Signal stabilization 30 sec
Signal NO FAULT 24V, max. 100mA
Measured gas flow 0.2 ÷ 0.3 l / min
Inlet pressure 1 Barg ± 0.1 Bar
Maximum allowable pressure PS 2 Bar
Operating temperature O °C ÷ 50 °C [32 °F ÷ 122 °F]

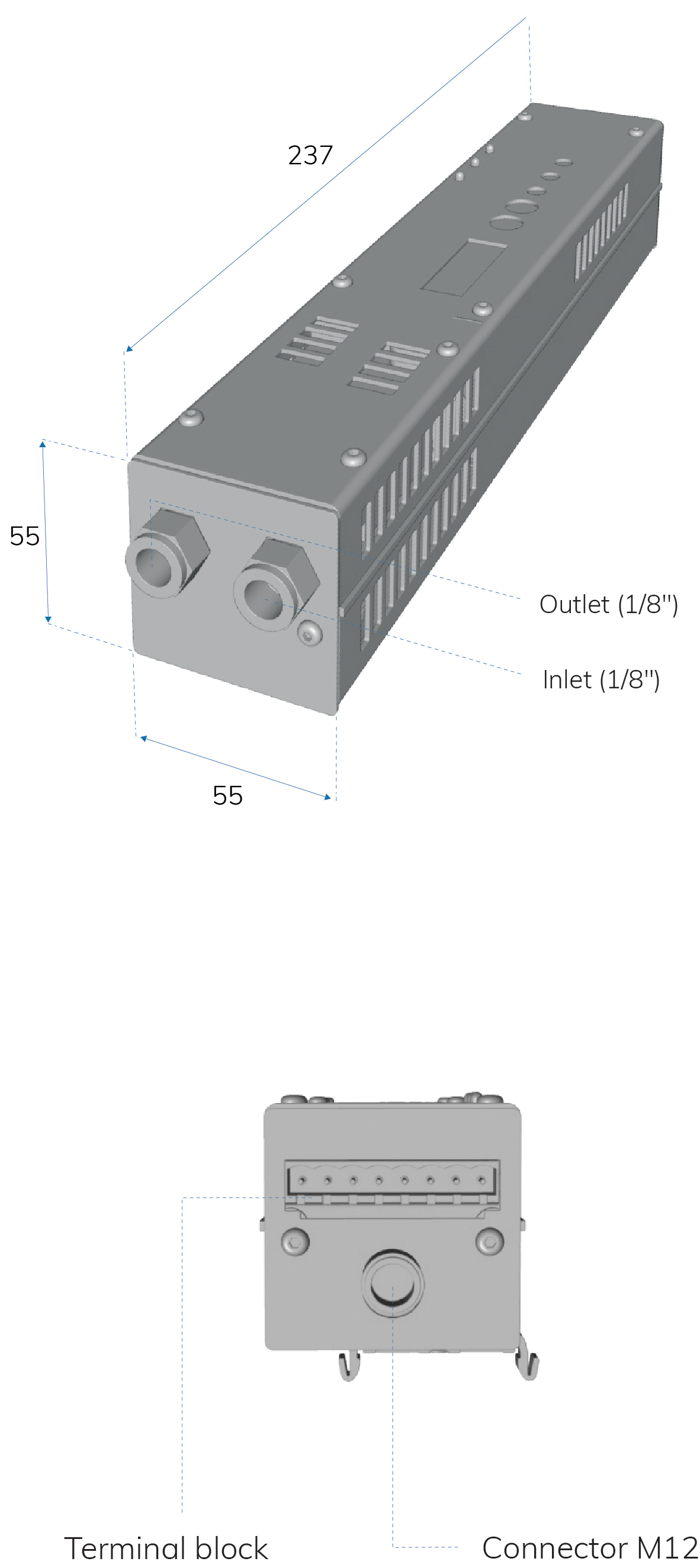

Dimensions 237 x 55 x 55 mm
Sensor Lifetime 24 months at concentrations <2%

Looking for a gas

As a supplier of premium gas analyzers to the most advanced concentrator producers, we can help you choose the right solution for your application.
