Our analyzers provide precise and reliable oxygen measurement, offering a significant advantage. Achieve optimal monitoring and control of oxygen levels in your environment for the best results and a healthy process.
Play video on Youtube
Our analyzer delivers fast and accurate results without unnecessary complexity. Its user-friendly interface and quick response make it easy to interpret the measured data. Our customer support is available to ensure a seamless user experience.

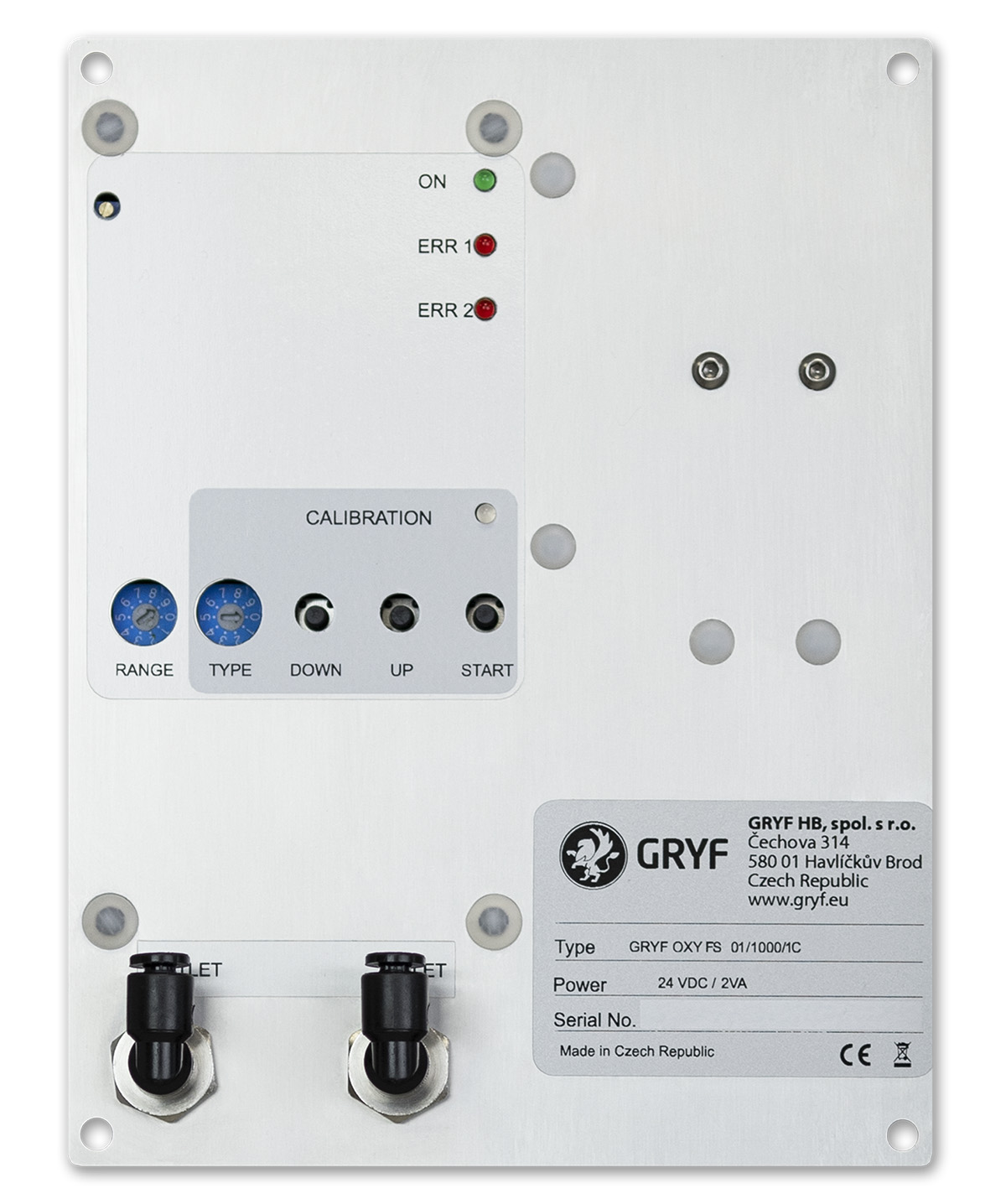

Choose the appropriate measuring range using the rotary switch on the front panel. The analyzer supports four predefined ranges for accurate measurements.

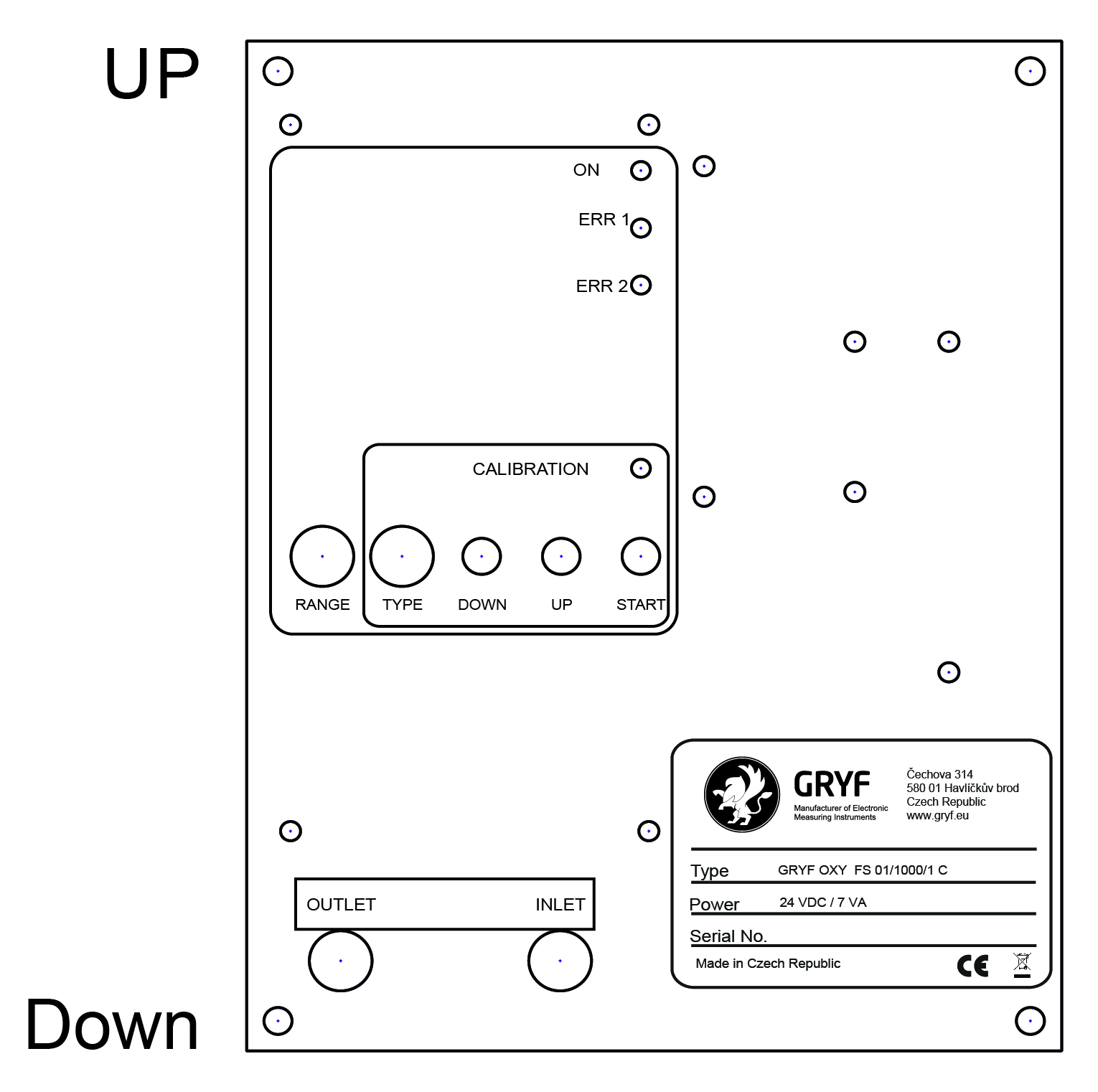

Install the analyzer in a cabinet or case, preferably in a vertical position. Connect the gas hoses to the appropriate inlet and outlet lines on the front panel.
| Supply voltage | 24 V/DC ± 10% |
| Supply current | 60 mA |
| Solenoid valves supply voltage | 24 V/DC±10% |
| Solenoid valves power requirement | 5W |
| Output signal | 4 ÷ 20 mA |
| Oxygen concentration range | 0 ÷ 1000 ppm |
| Sensitivity (resolution) | 0.1 ppm |
| Resolution of current output | 1 ppm (output 0 ÷ 1000 ppm), 0.1 ppm (output 0 ÷ 100 ppm) |
| Accuracy | ± 1 % from value, ± 0.2 ppm |
| Signal stabilization | 30 sec. |
| Signal NO FAULT | 24 V, max. 100mA |
| Measured gas flow | 0.2 ÷ 0.3 l / min |
| Inlet pressure | 1 Barg ± 0.1 Bar |
| Operating temperature | 0 °C ÷ 50 °C [32 °F ÷ 122 °F] |
| Sensor Lifetime | 15-21 months at concentrations < 1000ppm |
| Dimensions | 167 x 130 x 65 mm |
As a supplier of premium gas analyzers to the most advanced concentrator producers, we can help you choose the right solution for your application.
